FUNCTIONS AND FEATURES:

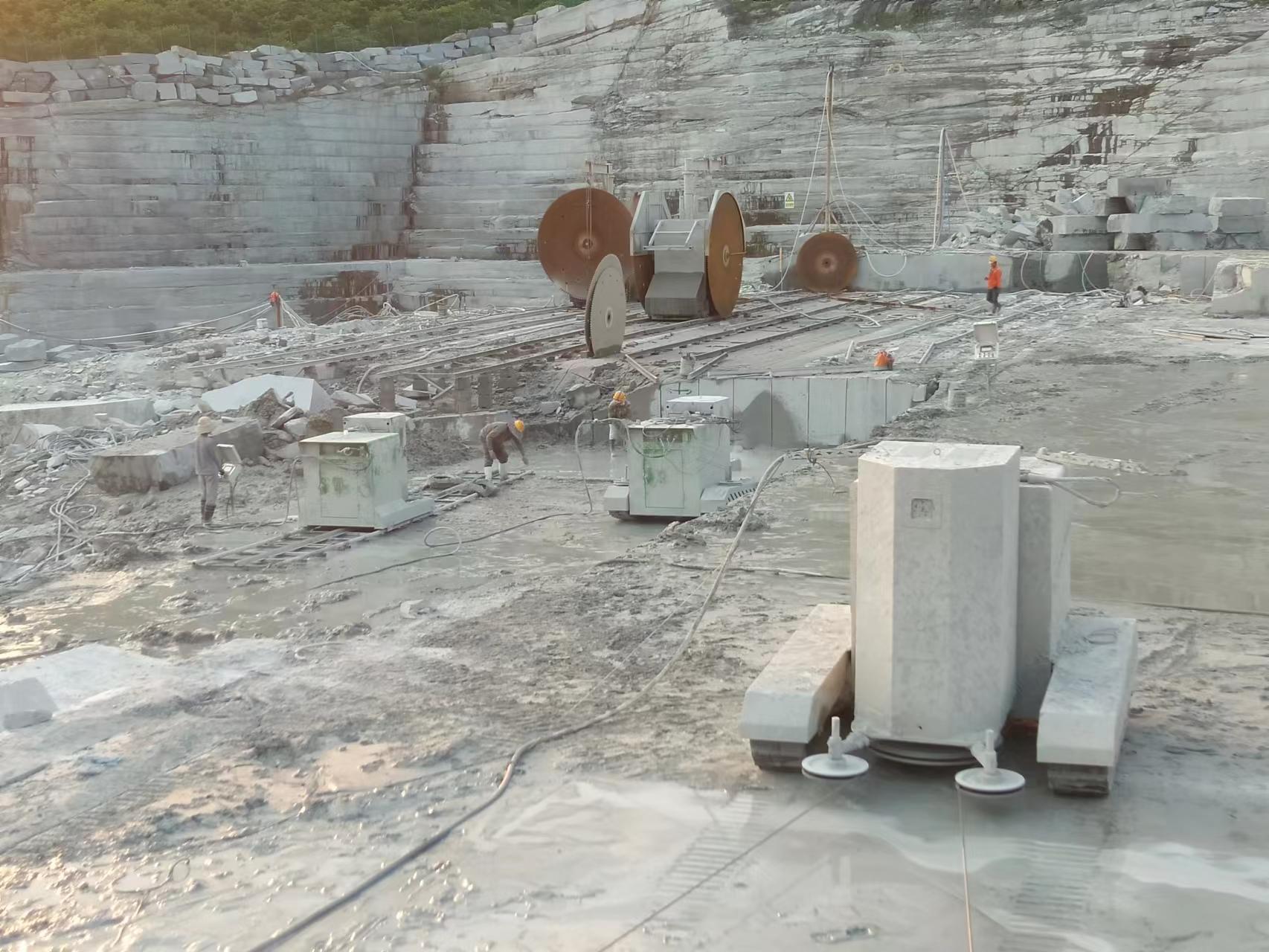

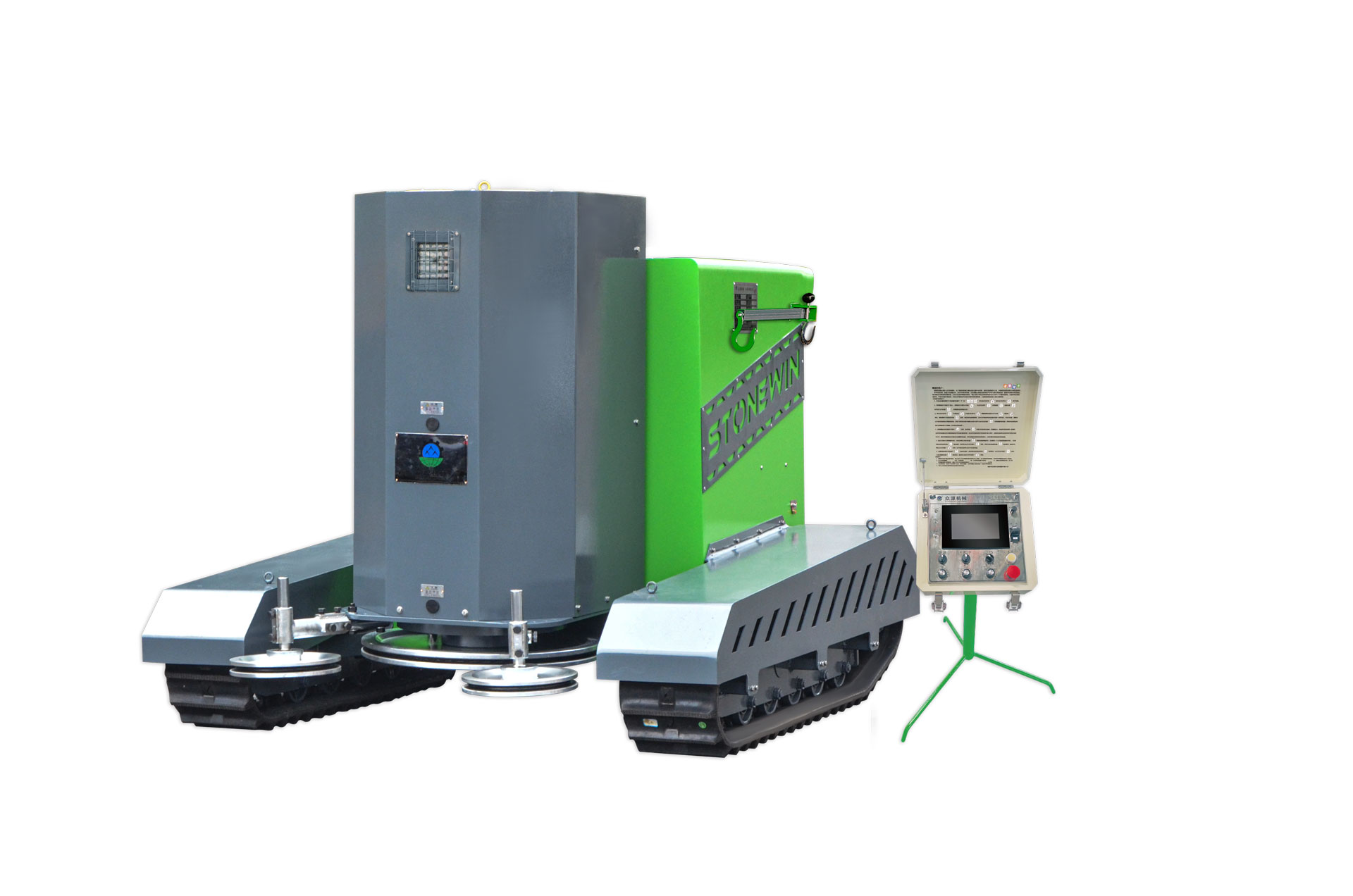

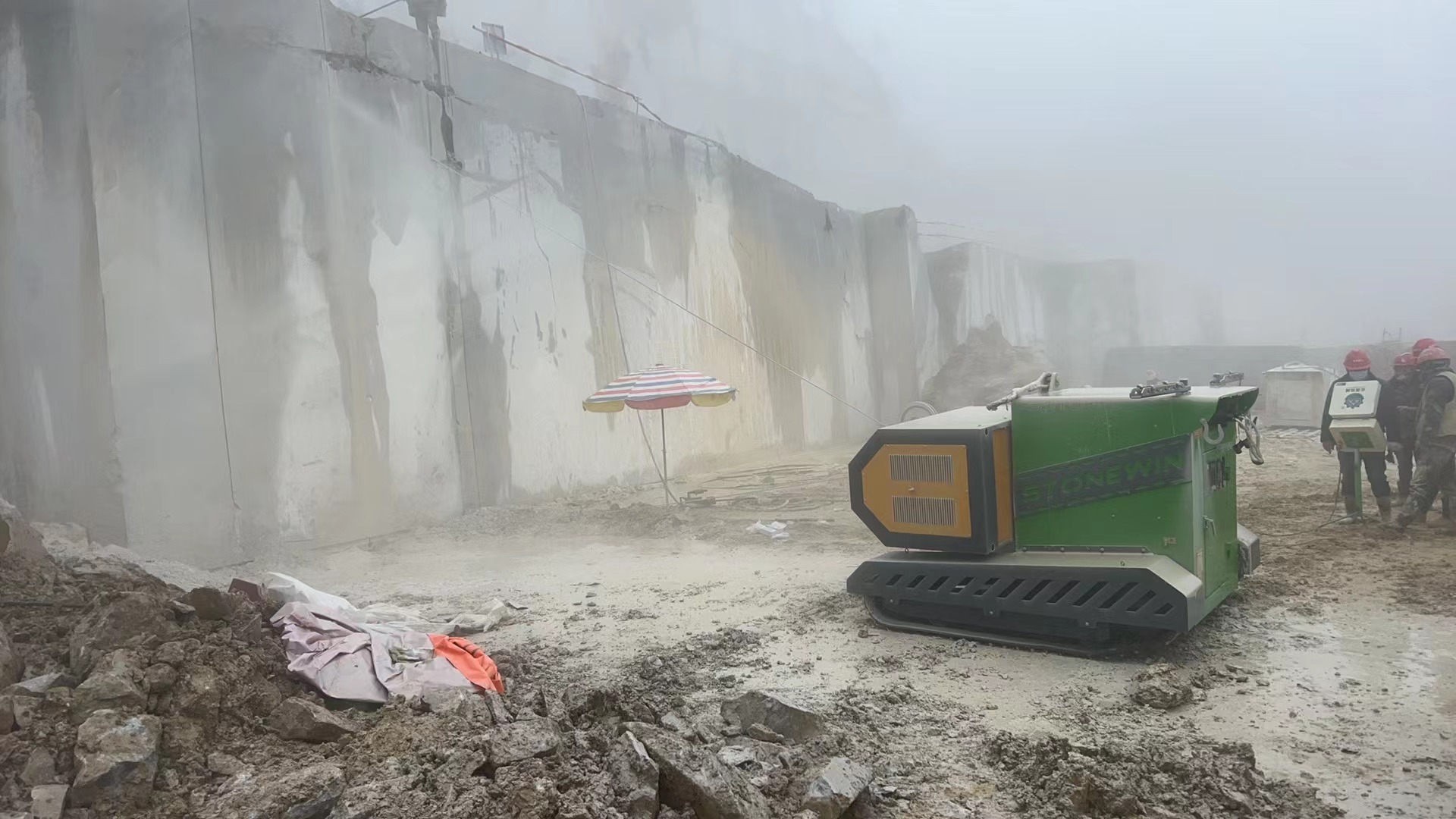

The permanent magnet synchronous crawler-type wire saw machine is primarily utilized for various stone cutting like granite, marble, etc. and mining operations in stone quarries. It boasts the following features:
1.Dual operation modes—wired and wireless—ensuring more reliable use. 2.Equipped with an automatic correction function for more stable cutting. 3. Utilizes the same type of Xingxing (Star) reducer as excavators, providing stable movement with high precision. 4.Integrated with the Internet of Things (IoT) for remote operation. 5. The crawler moves automatically, featuring strong climbing capability and eliminating the need for lifting during site transfers. 6.Delivers high mining efficiency, effectively reducing cutting costs.
FUNCTIONS AND FEATURES:
1.Being controlled by two sets of inverters and applying constant tension control principle,the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
2.The machine is without phase request.It doesn’t need to change or distinguish the power phase.The machine has the following protection functions:wire broken protection,over-loading protection,open-phase protection,terminal limit,and so on.
3.The lateral moving and the rotation angle of the cutting head are controlled and driven by electric motor.There is photoelectric proximity switch installed on the cutting head for position limitation protection.This funtion enables the machine to work normally under harsh circumstance with moisture and dust.
4.The real-time parameters are displayed on the control platform,such as the set current of the main motor,the current and the rotation speed of the main motor,etc.It makes the operation and adjustment of the machine more convenient.
5.The machine can be operated manually and automatically.The manual and automatic functions can be shfted from each other.Under the automatic function,the machine can be unattended operated,and one worker is able to operate multiple machines.
6.Using Permanent Magnet Synchronous Motor, the wire saw machine is more energy-saving, larger torque, and higher efficient.
| MODEL | ZY-70YG-12P |
| CUTTING OBJECT | GRANITE&MARBLE |
| MAIN MOTOR POWER | 83KW |
| FLYWHEEL DIAMETER | ɸ800mm |
| WIRE SAW SPEED | 0-40m/s |
| MAX.WIRE SAW LENGTH | 20-150m |
| ROTATION ANGLE(ELECTRIC) | 360° |
| WALKING SPEED OF MACHINE | 0-150m/h |
| MAIMUM CLIMBING ANGLE | ±15° |
| ALLOWED WORKING TEMPERATURE | -15~+40℃ |
| DIMENSION:L*W*H | 2550*1950*1570mm |
| NET WEIGHT | 4T |
